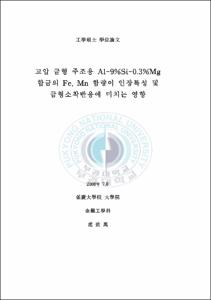

고압 금형 주조용 Al-9%Si-0.3%Mg합금의 Fe, Mn 함량이 인장특성 및 금형소착반응에 미치는 영향
- Alternative Title
- Effect of Fe, Mn Content on the Tensile Property and Die Soldering Reaction in Al-9%Si-0.3%Mg Alloys for High Pressure Die Casting
- Abstract
- Effect of iron and manganese contents on the tensile properties and die soldering reaction has been studied in Al-9wt%Si-0.3wt%Mg alloy.
As Fe content of Al-9wt%Si-0.3wt%Mg-0.5wt%Mn melts increased from 0.15wt% to 0.45wt%, tensile strength of each alloy was nearly same, 275 MPa but, elongation of each alloy decreased from 4.1% to 3.6%. However when Mn content of Al-9wt%Si-0.3wt%Mg -0.45wt%Fe melts increased from 0.3wt% to 0.5wt%, tensile strength of each alloy was 265 MPa and 275 MPa respectively and, elongation of each alloy increased from 2.3% to 3.6%.
Ternary αhcp-Al8Fe2Si and αbcc-Al8Fe2Si intermetallic compounds formed by interaction diffusion between Al-Si-Mg system alloy melt and SKD 61 die steel surface. Thickness of soldering reaction layer in die steel surface decreased as Fe and Mn contents of the melts increased : When Fe content of Al-9wt%Si-0.3wt%Mg melts at constant 0.5wt%Mn content was 0.15wt%, 0.45wt% and 0.6wt%, thickness of soldered layer of each alloy was 64.5㎛, 57.3㎛ and 46.9㎛ respectively. For Mn content of the alloy melts at constant 0.45wt%Fe content was 0.30wt%, 0.50wt% and 0.70wt%, thickness of soldered layer of each alloy was 66.1㎛, 57.3㎛ and 48.3㎛ respectively.
- Author(s)
- 조치만
- Issued Date
- 2008
- Awarded Date
- 2008. 8
- Type
- Dissertation
- Keyword
- Al-9%Si-0.3%Mg합금 금형소착 Sludge Factor
- Publisher
- 부경대학교 대학원
- URI
- https://repository.pknu.ac.kr:8443/handle/2021.oak/11010
http://pknu.dcollection.net/jsp/common/DcLoOrgPer.jsp?sItemId=000001955442
- Alternative Author(s)
- Cho, Chi-Man
- Affiliation
- 부경대학교 대학원
- Department
- 대학원 금속공학과
- Advisor
- 김헌주
- Table Of Contents
- 1. 서론 = 1
2. 이론적 배경 = 3
2.1. Al-Si계 합금에서 기계적 성질에 미치는 Fe의 영향 = 3
2.2. 금형소착반응의 일반적 이론 = 4
2.3. Sludge Factor = 9
3. 실험방법 = 11
3.1. 시료제조 = 11
3.2. 인장 시험(Tensile Test) = 14
3.3. 소착시험(Soldering Test) = 19
4. 실험결과 및 고찰 = 23
4.1. 인장시험 결과 = 23
4.1.1. 미세조직 관찰 = 23
4.1.2. 알루미늄합금의 Fe 함량에 따른 인장특성 = 25
4.1.3. 알루미늄합금의 Mn 함량에 따른 인장특성 = 27
4.2. 소착시험 결과 = 29
4.2.1. 미세조직 관찰 = 29
4.2.2. 알루미늄합금의 Fe 함량에 따른 소착 반응층 두께 = 35
4.2.3. 알루미늄합금의 Mn 함량에 따른 소착 반응층 두께 = 37
4.3. 인장특성 및 소착반응을 고려한 합금비교 = 40
5. 결론 = 43
참고문헌 = 44
- Degree
- Master
-
